Field-Reversed Configuration / saved simulation

Inside the plasma

Current density in volume. Magnetic structure in motion. Two views of the same saved state.

Axisymmetric · 3D rendering

CurrentOpacityHide belowField lines Tube & coils

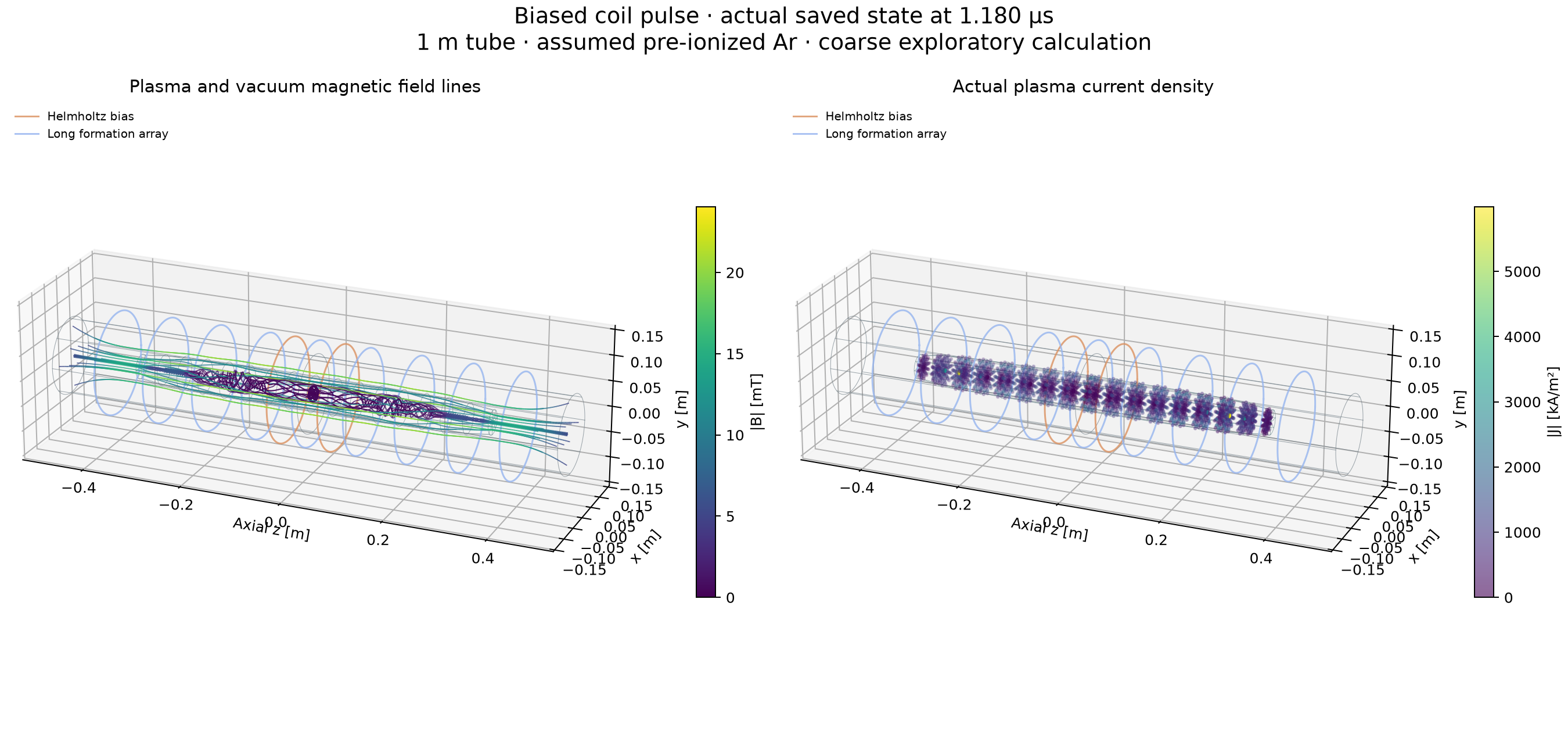

Current density magnitude

Volume of the saved current · opacity reveals the interior

DRAG TO ROTATE · SCROLL TO ZOOM

Magnetic field

Plasma + vacuum field lines · color shows |B|

LINKED CAMERA · TRUE PHYSICAL PROPORTIONS

Saved time

Sampled peak |B|

Sampled peak |J|

Mean electron / ion temperature

Exploratory pre-ionized plasma model. More rendering detail does not add simulation resolution or establish FRC formation, stability or confinement.

Physical model, source and rendering

The volume is revolved from the actual axisymmetric current. Colors show A/m²; opacity is illustrative, not emitted light. Low-current filtering changes visibility only. Thin interpolation boundary cells are omitted, and vacuum carries no current. Field lines are interpolated paths, not particle trajectories. All directions share one length scale.

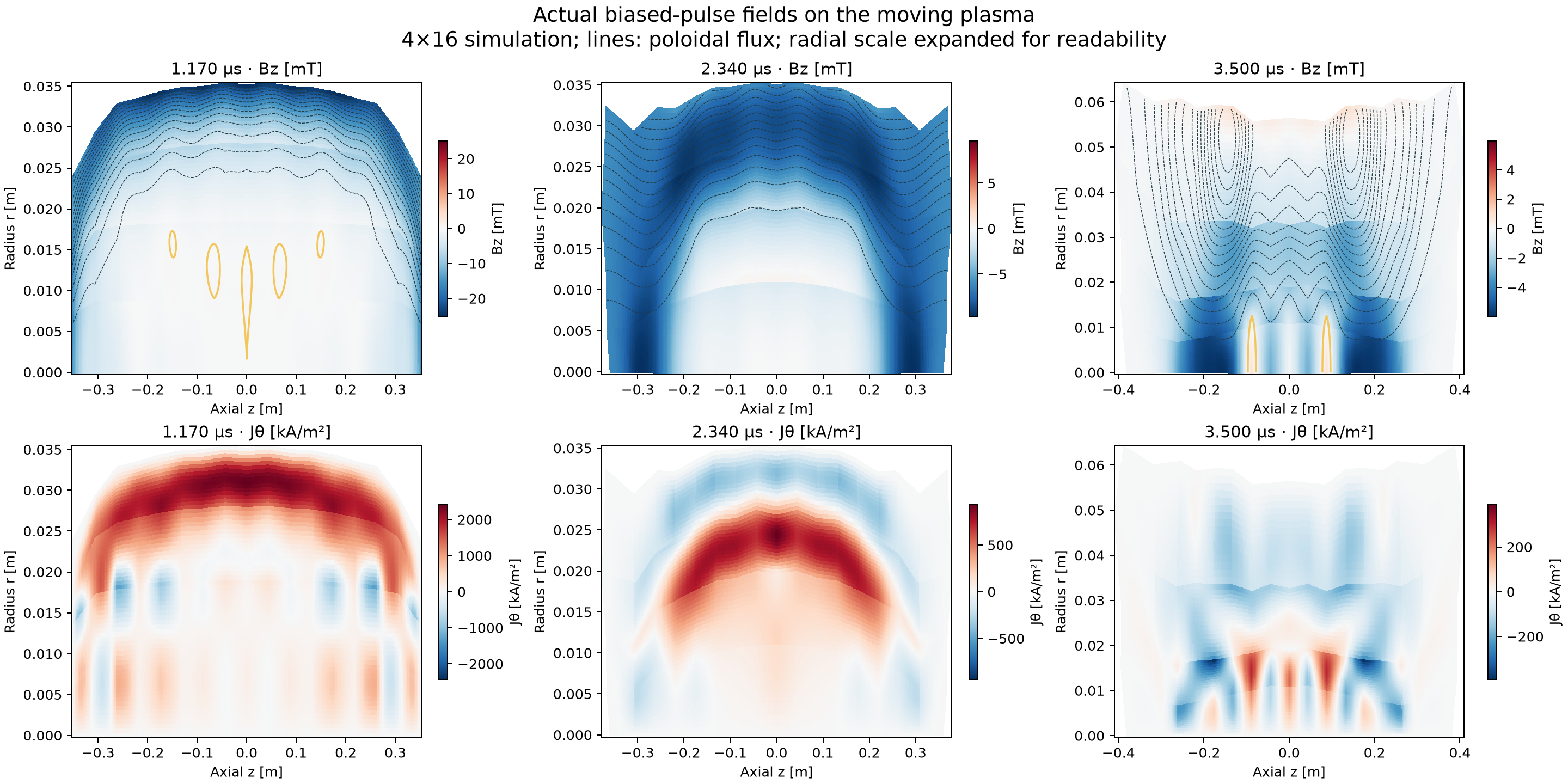

Scientific overview · Signed fields and flux contours · Saved display data
